Single-row Four Point Contact Ball Slewing Bearing (Internal gear type)

BU ÜRÜNÜ ŞİMDİ SATIN ALMAK İSTER MİSİNİZ?

Size hemen ücretsiz numune ve en kısa teslimat ile teklif vereceğiz.

Talep Gönder

Hot tags: China single-row four point contact ball slewing bearing (internal gear type) suppliers, single-row four point contact ball slewing bearing (internal gear type) factory, single-row four point contact ball slewing bearing (internal gear type) price

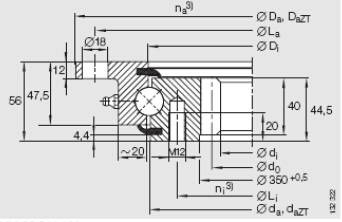

Tanım ve Teknik çaplar

seçme	Sorgu	Designations	Boundary Dimension （mm）			Bolt Hole Diameter （mm）						Ağırlık
seçme	Sorgu	Designations	Da	Di	H	La	Li	na3)	ni3)	m	z	Kilogram
		I.505.20.00.C bearing	518	325	56	490	375	8	12	5	67	27.5
		I.650.20.00.C bearing	648	444	56	620	505	10	16	6	76	38
		I.750.20.00.C bearing	748	546	56	720	605	12	18	6	93	45
		I.850.20.00.C bearing	848	648	56	820	705	12	20	6	110	51.5
		I.950.20.00.C bearing	948	736	56	920	805	14	20	8	94	61.5
		I.1050.20.00.C bearing	1048	840	56	1020	905	16	22	8	107	67.5
		I.1200.20.00.C bearing	1198	984	56	1170	1055	16	24	8	125	81.5
