Single-row Four Point Contact Ball Slewing Bearing (External gear type)

BU ÜRÜNÜ ŞİMDİ SATIN ALMAK İSTER MİSİNİZ?

Size hemen ücretsiz numune ve en kısa teslimat ile teklif vereceğiz.

Talep Gönder

Hot tags: China single-row four point contact ball slewing bearing (external gear type) suppliers, single-row four point contact ball slewing bearing (external gear type) factory, single-row four point contact ball slewing bearing (external gear type) price

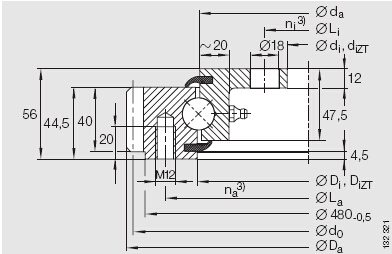

Tanım ve Teknik çaplar

seçme	Sorgu	Designations	Boundary Dimension （mm）			Bolt Hole Diameter （mm）						Ağırlık
seçme	Sorgu	Designations	Da	Di	H	La	Li	na3)	ni3)	m	z	Kilogram
		E.505.20.00.C bearing	503.3	304	56	455	332	10	12	5	99	29.5
		E.650.20.00.C bearing	640	434	56	585	462	14	14	6	105	41.5
		E.750.20.00.C bearing	742	534	56	685	562	16	16	6	122	48.5
		E.850.20.00.C bearing	838	634	56	785	662	18	16	6	138	54.5
		E.950.20.00.C bearing	950	734	56	885	762	18	18	8	117	65.5
		E.1050.20.00.C bearing	1046	834	56	985	862	20	20	8	129	71.5
		E.1200.20.00.C bearing	1198	984	56	1135	1012	22	20	8	148	83.5
