Number:
d:
D:
B:
  • LMB..LUU Series
  • LMB..LUU Series

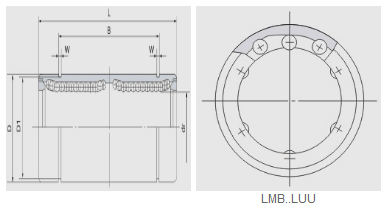

LMB..LUU Series

LMB..LUU Series bearing

BU ÜRÜNÜ ŞİMDİ SATIN ALMAK İSTER MİSİNİZ?

Size hemen ücretsiz numune ve en kısa teslimat ile teklif vereceğiz.

Talep Gönder
PDF
Hot tags: China lmb..luu series bearing suppliers, lmb..luu series bearing factory, lmb..luu series bearing price
seçmeSorguRulman NumarasıNominal mil çapıdoktorAna boyutlar ve toleransEccentricity(Inch/μm)Temel yük derecesi (kN)
LMB…UUtop devresiAğırlık (kg)InchmmInchTolerance(Inch)Tolerans(μm)D(Inch/mm)D Tolerance（inch）D Tolerance（(μm）L(Inch/mm)L Tolerance(inch)L Tolerance(μm)B(Inch/mm)B Tolerance(Inch)B Tolerance(μm)W(Inch/mm)D1(Inch/mm)DinamikStatik
LMB4L bearing 4 17.5 1/4 6.35 .2500/6.350 0/-.00040 0/-10 .5000/12.700 0/-.00050 0/-13 1.3750/34.925 0/-.012 0/-300 1.0220/25.959 0/-.012 0/-300 .0390/0.992 .4687/11.906 .0006/15 323 530
LMB6LUU bearing 4 28 3/8 9.525 .3750/9.525 0/-.00040 0/-10 .6250/15.875 0/-.00065 0/-16 1.5938/40.481 0/-.012 0/-300 1.2716/32.298 0/-.012 0/-300 .0390/0.992 .5880/14.935 .0006/15 353 630
LMB8LUU bearing 4 80 1/2 12.7 .5000/12.700 0/-.00040 0/-10 .8750/22.225 0/-.00065 0/-16 2.3750/60.325 0/-.012 0/-300 1.9250/48.895 0/-.012 0/-300 .0459/1.168 .8209/20.853 .0006/15 813 1
LMB10LUU bearing 4 160 5/8 15.875 .6250/15.875 0/-.00040 0/-10 1.1250/28.575 0/-.00065 0/-16 2.8125/71.438 0/-.012 0/-300 2.2079/56.080 0/-.012 0/-300 .0559/1.422 1.0590/26.899 .0006/15 1230 2350
LMB12LUU bearing 5 195 3/4 19.05 .7500/19.050 0/-.00050 0/-12 1.2500/31.750 0/-.00075 0/-19 3.0937/78.581 0/-.012 0/-300 2.3314/59.218 0/-.012 0/-300 .0559/1.422 1.1760/29.870 .0008/20 1370 2740
LMB16LUU bearing 6 410 1 25.4 1.0000/25.400 0/-.00050 0/-12 1.5625/39.688 0/-.00075 0/-22 4.2831/108.744 0/-.016 0/-400 3.5049/89.139 0/-.016 0/-400 .0679/1.727 1.4687/37.306 .0008/20 1570 3140
LMB20LUU bearing 6 820 1-1/4 31.75 1.2500/31.750 0/-.00060 0/-15 2.0000/50.800 0/-.00090 0/-22 5.0000/127.000 0/-.016 0/-400 4.0094/101.839 0/-.016 0/-400 .0679/1.727 1.8859/47.904 .0010/25 2500 5490
LMB24LUU bearing 6 1250 1-1/2 38.1 1.5000/38.100 0/-.00060 0/-15 2.3750/60.325 0/-.00090 0/-22 5.6875/144.463 0/-.016 0/-400 4.8236/122.519 0/-.016 0/-400 .0859/2.184 2.2389/56.870 .0010/25 3430 840
LMB32LUU bearing 6 1350 2 50.8 2.0000/50.800 0/-.00060 0/-15 3.0000/76.200 0/-.00100 0/-25 7.7500/196.850 0/-.016 0/-400 6.3834/162.138 0/-.016 0/-400 .1029/2.616 2.8379/72.085 .0012/30 680 15900
